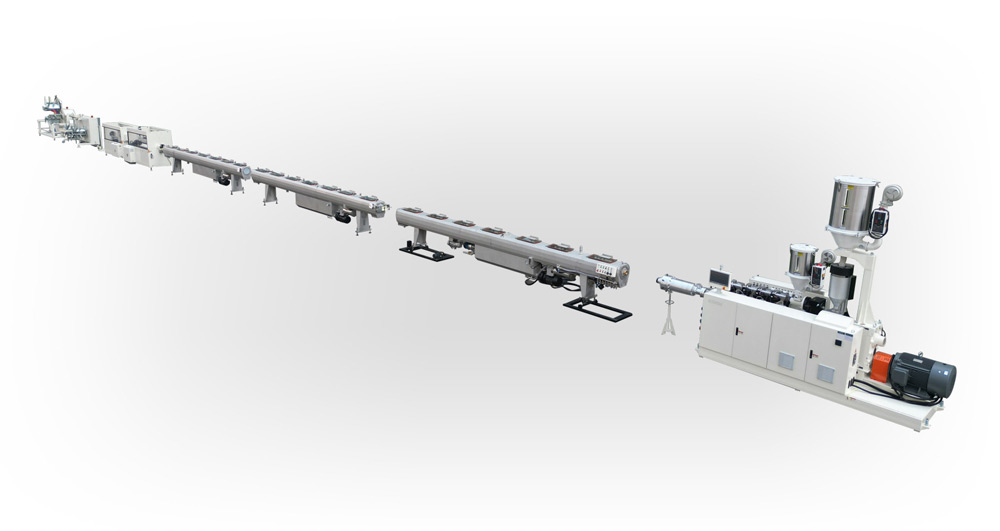

High speed PE/PP water/electrostatic piple extrusion line
All rights reserved：Established in 1982, TongDa Plastic Machinery Co., Ltd. Update time：2024-04-11 21:06:48
主要技術(shù)參數(shù)：
Model | Pipe Dia. (mm) | Output (Kg/h) | MAX.Line Speed (m/min) | Motor Power (kw) | Line Lengt (m) |
SJ-75/34 | 20-110 | 350 | 10 | 90 | 45 |
SJ-75/34 | 75-200 | 500 | 8 | 132 | 45 |
SJ-75/38 | 110-315 | 600 | 4 | 160 | 50 |
Tongda offers a wide range of high capacity PO extruder depending on application and output. The robust design and controls with proprietary software give operators the
opportunity to reach for higher productivity at each stage of the pipe extrusion process.
Spiral Die Heads are high-performing tools with a spiral distributor, which guarantee an optimal pipe quality. The spiral distributor is designed to achieve optimum melt
distribution for a wide MFI range.
Vacuum-spray tanks made of SS304 stainless steel material are distinguished by a robust construction as well as a design resulting from direct feedback from previous customers.
The generously dimensioned pumps guarantee a fast drive up and well operation of the line.
The wide range of Tongda haul offs offers maximum flexibility. Available with 2, 3, 4, 6 or 8 tracks. The tracks are dependent on the pipe dimension and wall thickness.
The unique design of the Tongda cutters incorporates chisels which rotate around the pipe. Because of this no dust will be produced
